Complete AutoCAD Troubleshooting Guide: Installation, Licensing, Graphics Errors, Compatibility & Advanced Solutions

AutoCAD is one of the most widely used CAD (Computer-Aided Design) software applications across engineering, architecture, construction, interior design, manufacturing, and education industries. While AutoCAD is powerful, users often face installation failures, licensing problems, performance issues, graphics errors, compatibility conflicts, and add-on integration challenges.

Professional AutoCAD drafting and design work performed on a desktop workstation

Reviewing and editing AutoCAD floor plan drawings on a tablet for flexible design workflow

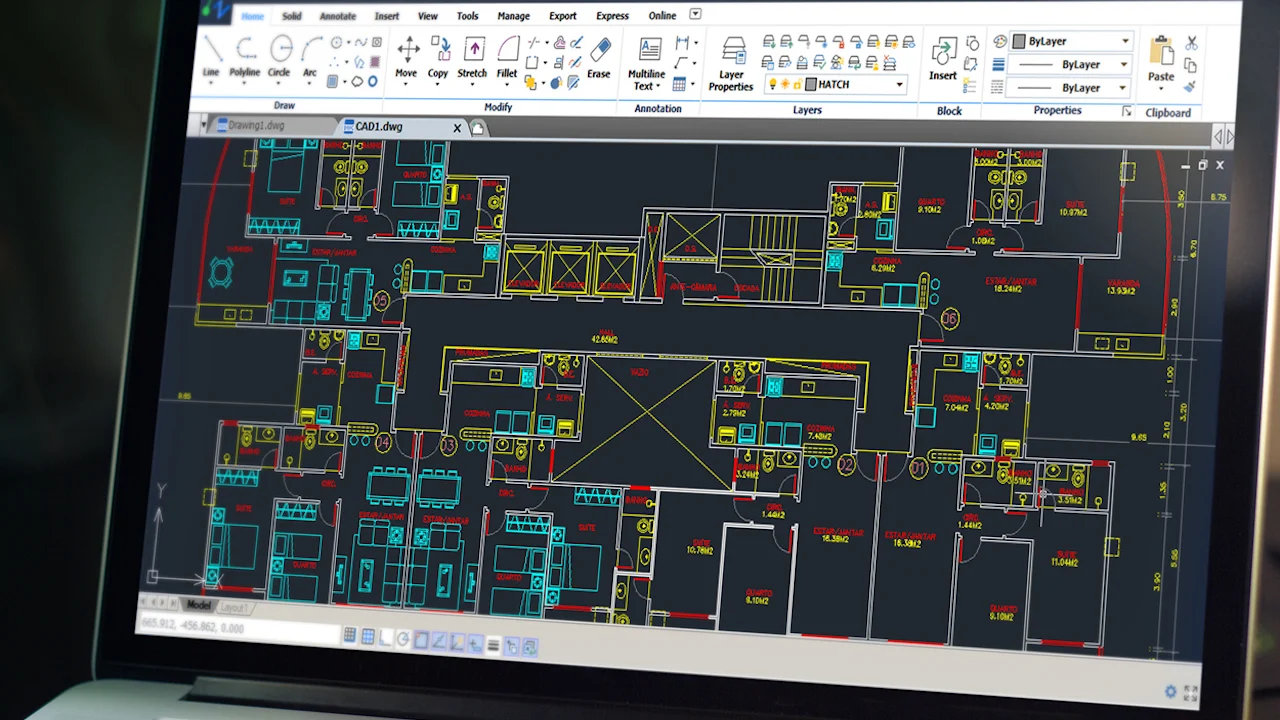

Detailed office floor plan designed using AutoCAD for professional architectural and interior planni

This Complete AutoCAD Troubleshooting Guide guide explains common to advanced AutoCAD issues, their root causes, and step-by-step solutions. This guide is applicable for all AutoCAD versions, from older releases to the latest versions.

1. Complete AutoCAD Troubleshooting Guide

Common AutoCAD Installation Issues

• AutoCAD installation stuck at a certain percentage

• Error 1603 / 1606 / 1308 during installation

• Installation completes but AutoCAD does not open

• “Another Autodesk installer is already running”

• Missing prerequisites (.NET, Visual C++)

Root Causes

• Incomplete previous AutoCAD installation

• Corrupted Windows Installer service

• Missing Windows updates

• Antivirus or firewall blocking installer

• Insufficient system permissions

Step-by-Step Solution

1.Uninstall all Autodesk products

• Go to Control Panel → Programs → Uninstall all Autodesk software

• Remove Autodesk Desktop App and Autodesk Genuine Service

2.Clear leftover files (Important)

• C:\Program Files\Autodesk

• C:\Program Files (x86)\Autodesk

• C:\ProgramData\Autodesk

• C:\Users\%username%\AppData\Local\Autodesk

• C:\Users\%username%\AppData\Roaming\Autodesk

3.Clean registry entries

• Open regedit

• Delete:

  • HKEY_LOCAL_MACHINE\SOFTWARE\Autodesk

  • HKEY_CURRENT_USER\Software\Autodesk

4.Install prerequisites

• Microsoft .NET Framework

• Visual C++ Redistributables

• Latest Windows Updates

5. Run installer as Administrator

   • Disable antivirus temporarily

   • Right-click setup → Run as administrator

Autodesk AutoCAD activation sign-in error requiring account reauthentication

AutoCAD LT 2024 installation failed due to system or setup error

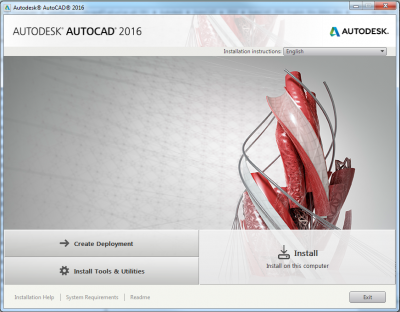

AutoCAD 2016 installation setup interface displayed during software deployment

AutoCAD LT 2025 installation error encountered on Mac system

2. AutoCAD Leftover Files Cleanup (Deep Clean Method)

Even after uninstalling AutoCAD, leftover files can cause:

• Installation failure

• License activation errors

• Version conflict issues

Advanced Cleanup Checklist

• Remove Autodesk services from Windows Services

• Use Autodesk Uninstall Tool

• Clear Temp folders:

  • C:\Windows\Temp

  • %temp%

• Restart system before reinstalling

This step is critical when switching between different AutoCAD versions.

AutoCAD installation files consuming large storage space on computer

Disk space occupied by AutoCAD installation files on a Windows system

Identifying AutoCAD registry paths for troubleshooting software errors

Removing AutoCAD leftover registry files to resolve installation and activation issues

3. Genuine AutoCAD License Activation Issues

Common Licensing Errors

• License expired

• Serial number invalid

• Network license not working

• AutoCAD running in trial mode

• “Unable to connect to Autodesk servers”

Causes

• Internet or proxy issues

• Firewall blocking Autodesk services

• Incorrect system date/time

• License tied to old hardware

• Corrupted license cache

Solutions

• Sign in with correct Autodesk account

• Check system date & time

• Reset license cache

  • Delete:

    • C:\ProgramData\Autodesk\CLM

    • C:\ProgramData\Autodesk\AdskLicensing

• Allow Autodesk services through firewall

  • Allow AdskLicensingService

  • Allow AutoCAD executable

• Network License Fix

  • Verify license server status

  • Check port and hostname

  • Update license file

AutoCAD license activation issue displayed during software launch on Windows

Autodesk AutoCAD activation sign-in error requiring account reauthentication

AutoCAD trial period expired prompt asking users to subscribe for continued access

AutoCAD LT trial expiry message displaying subscription and free trial options

4. AutoCAD Graphics Problems & Display Errors

Common Graphics Issues

• Blank or black screen

• Flickering drawings

• Cursor lag

• Objects disappear while zooming

• AutoCAD crashes while opening drawings

Root Causes

• Incompatible graphics driver

• Hardware acceleration conflict

• Unsupported GPU

• Incorrect graphics settings

How to Fix Graphics Errors

Method 1: Disable Hardware Acceleration

• Type

• Turn Hardware Acceleration OFF

• Restart AutoCAD

Method 2: Update Graphics Driver

• Download certified driver from GPU manufacturer

• Avoid Windows generic drivers

Method 3: Change Graphics Mode

• Switch between DirectX and Software mode

• Reduce visual effects

AutoCAD display turning black due to graphics or driver configuration problem

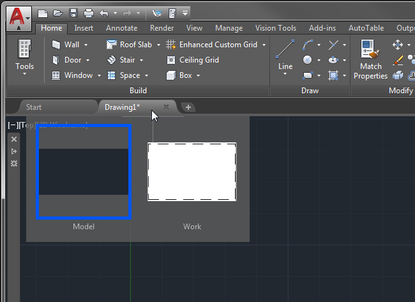

Resolving AutoCAD screen flickering by adjusting graphics and display settings

Enabling hardware acceleration in AutoCAD to improve graphics performance

Setting AutoCAD to use dedicated NVIDIA graphics card for better performance

5. AutoCAD Performance & Slow Working Issues

Symptoms

• AutoCAD opens slowly

• Commands lag

• Large files freeze AutoCAD

• Delay while saving drawings

Solutions

• Increase virtual memory

• Exclude AutoCAD folders from antivirus scan

• Purge and audit drawings regularly

• Use

• Move drawings to local SSD storage

Optimizing AutoCAD save and autosave settings to reduce lag and slow performance

AutoCAD using excessive CPU resources while working on large or complex drawings

6. AutoCAD Compatibility with Windows Versions

Supported Windows Versions

• Windows 10 (64-bit)

• Windows 11 (64-bit)

Older AutoCAD versions may not work properly on newer Windows builds due to:

• Deprecated libraries

• Security policy changes

• Driver compatibility

Best Practice

• Match AutoCAD version with supported Windows release

• Avoid running very old AutoCAD on Windows 11

7. AutoCAD Versions Overview (All Available Versions)

AutoCAD releases are available in:

• AutoCAD Full Version

• AutoCAD LT

• AutoCAD Web

• AutoCAD Mobile App

Each version differs in:

• 3D capabilities

• API support

• Add-on compatibility

• Automation tools

AutoCAD Architecture software used for architectural design with built-in furniture and 3D objects

AutoCAD Mechanical 2017 interface used for mechanical drafting and engineering design work

8. AutoCAD Add-ons, Plug-ins & Extensions

Common AutoCAD Extensions

• Express Tools

• Architecture Toolset

• Mechanical Toolset

• Electrical Toolset

• Map 3D Toolset

Plug-in Installation Issues

• Plug-in not loading

• Version mismatch

• Missing dependencies

Fix

• Install plug-ins matching AutoCAD version

• Enable plug-ins via

• Check trusted locations

Installing and managing AutoCAD plugins to enhance drafting and automation

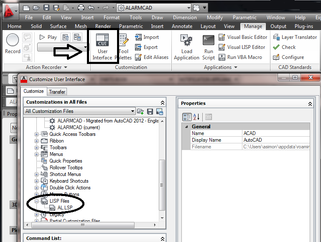

Loading AutoCAD plugins and LISP files using the APPLOAD command

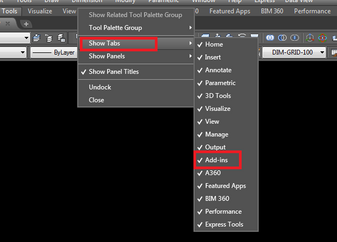

Enabling Express Tools tab in AutoCAD ribbon when it is not visible

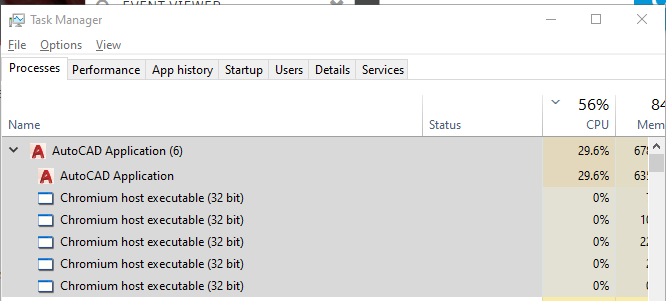

AutoCAD consuming high CPU resources even when no drawing file is open

9. AutoCAD Integration with Other Software

Common Integrations

• Revit

• 3ds Max

• SolidWorks

• SketchUp

• Excel

• GIS software

• PDF tools

Integration Problems

• File import/export errors

• Scale mismatch

• Layer corruption

• Missing objects

Solutions

• Match file format versions

• Use correct export/import settings

• Check unit consistency

• Install correct add-ons or connectors

AutoCAD to SolidWorks drawing and model conversion for engineering workflows

Exporting drawings to AutoCAD DWG format with geometry and block options

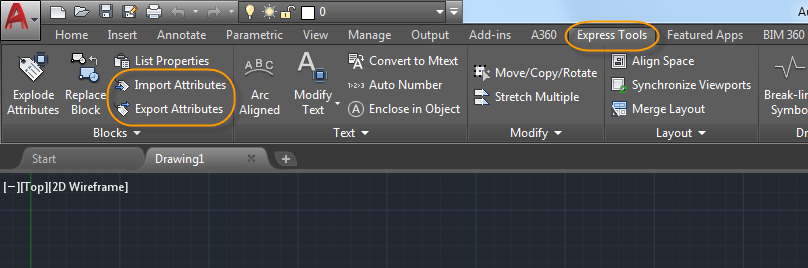

Using AutoCAD Express Tools to import and export block attributes efficiently

Automated Revit and AutoCAD project workflow using BIM 360, APIs, and cloud storage

10. How to Check AutoCAD Compatibility with Other Software

Compatibility Checklist

• Software version year

• File format support

• API compatibility

• Operating system support

• GPU and driver requirements

Best Practice

Always verify:

• System requirements

• Supported interoperability formats

• Certified hardware list

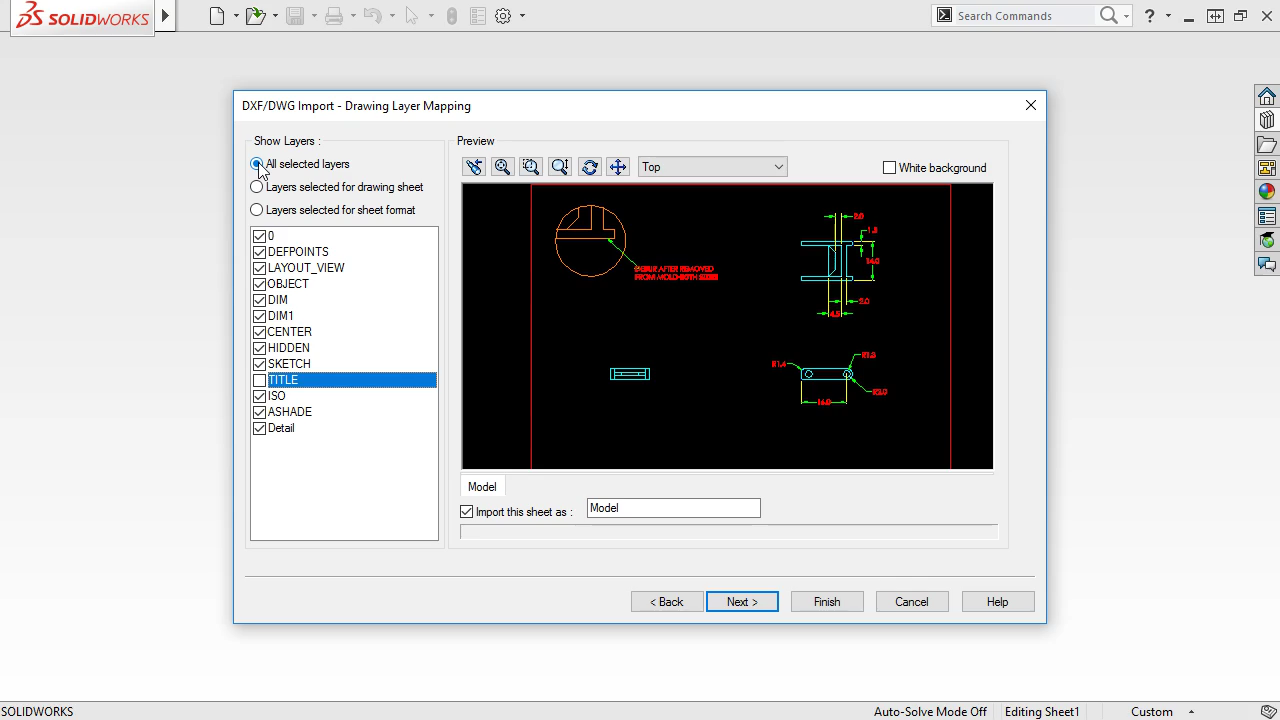

Transforming AutoCAD 2D drawings into accurate 3D models in SolidWorks for mechanical design

AutoCAD 2025 system requirements for Mac covering macOS versions hardware and display specs

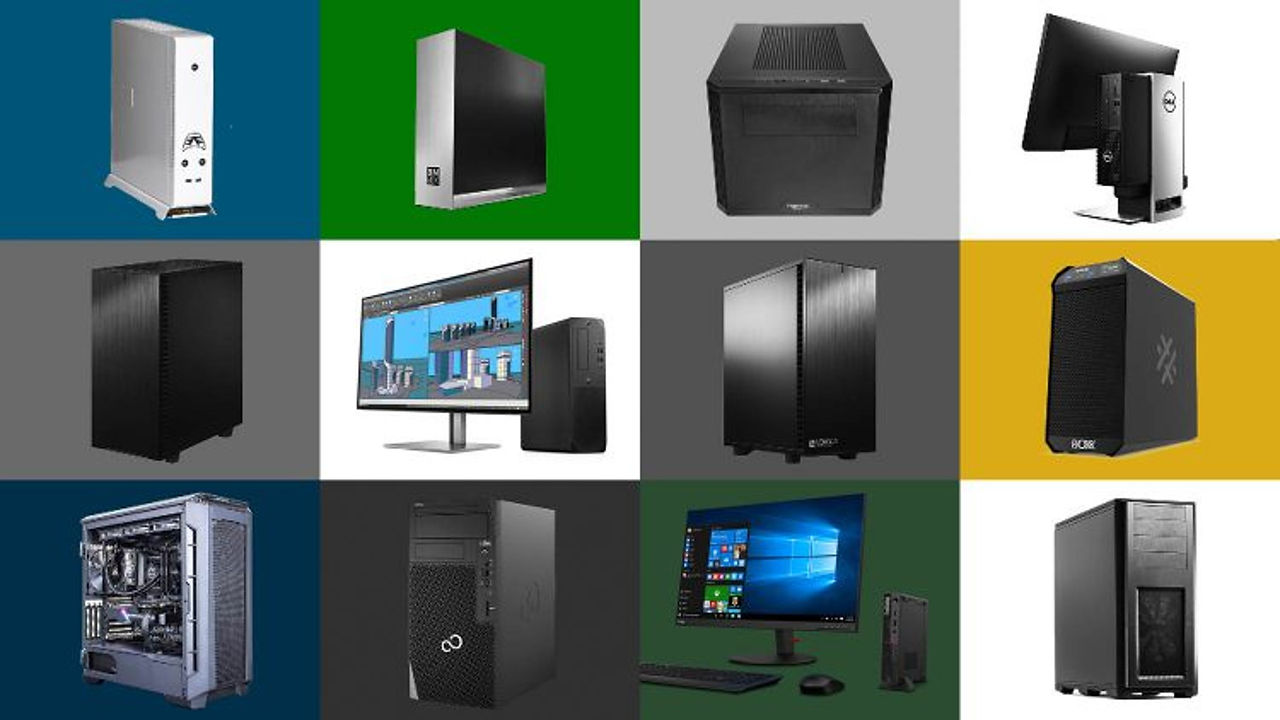

High-performance CAD workstations optimized for AutoCAD, SolidWorks, and 3D design software

11. AutoCAD Q&A – Common User Questions

Q: AutoCAD opens but closes immediatelyA: Check graphics driver, license service, and antivirus interference.

Q: AutoCAD license works on one PC but not anotherA: License may be device-limited or activation limit exceeded.

Q: Drawings appear corruptedA: Use RECOVER, AUDIT, and backup files.

Q: AutoCAD crashes on startupA: Reset user profile, disable add-ons, and check GPU settings.

12. Best Practices for Stable AutoCAD Usage

• Always use genuine licensed software

• Keep AutoCAD updated

• Use certified hardware

• Avoid mixing multiple AutoCAD versions unnecessarily

• Regularly back up drawings

Conclusion

AutoCAD issues can range from simple installation errors to complex licensing, graphics, and compatibility problems. Most problems can be resolved by proper cleanup, correct system configuration, and understanding software dependencies.

For professional environments, timely troubleshooting ensures productivity, data safety, and long-term system stability.
